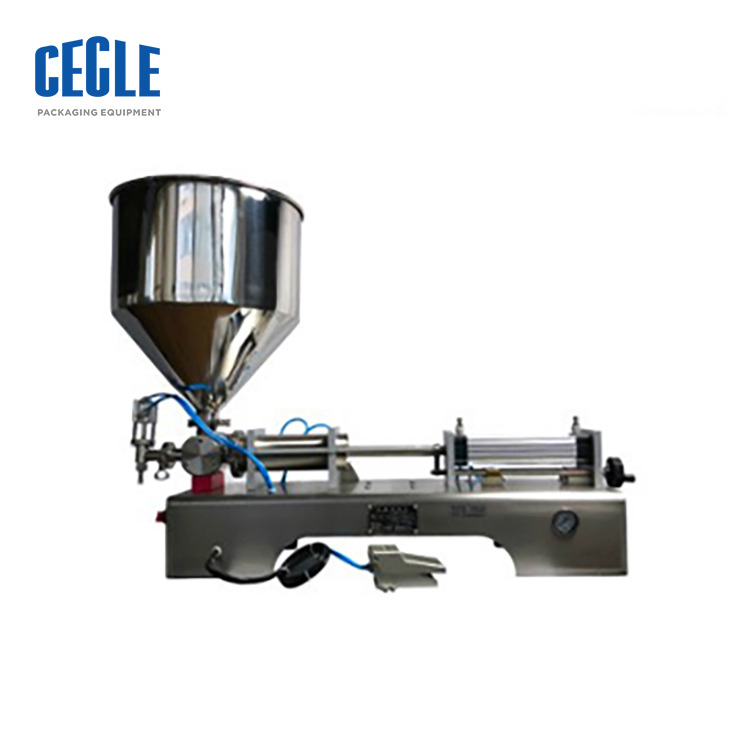

Wenzhou CECLE 5-5000ml chocolate paste tube filling machine

All Products

Skin Packing Machines (4)

Shrink Packing Machines (8)

Vacuum Packing Machines (5)

Hydraulic Hot Stamping Machine (12)

Paste Filling Machine (9)

Cellophane Wrapping Machine (9)

Liquid Filling Machine (15)

Bottle Capping Machine (5)

Automatic Labeling Machine (5)

Pillow Packing Machine (3)

I'm Online Chat Now

Certification

Good quality Shrink Packing Machines for sales

Wenzhou CECLE 5-5000ml chocolate paste tube filling machine

Large Image : Wenzhou CECLE 5-5000ml chocolate paste tube filling machine Get Best Price

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	T&D
Certification:	CE GMP

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Packed in thick carton box with foam.

Contact Now

Detailed Product Description

Type:	Filling Machine	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction WorksÂ , Energy & Mining, Food & Bevera
Showroom Location:	None	Condition:	New
Application:	Beverage, Chemical, Commodity, Food, MEDICAL	Packaging Type:	Bottles, CANS
Packaging Material:	Glass, Plastic, Wood	Automatic Grade:	Semi-automatic
Driven Type:	Pneumatic	Voltage:	None
Place Of Origin:	Zhejiang, China	Brand Name:	T&D
Dimension(LWH):	1013335+414150cm	Weight:	50 KG
Warranty:	1 Year, 12 Months	Key Selling Points:	Easy To Operate
Machinery Capacity:	4000BPH	Filling Material:	Beer, Milk, Water, Oil
Filling Accuracy:	1%	Marketing Type:	Hot Product 2019
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Pump
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Online Support	Processing Types:	Paste, Cream, Liquid, Oil Etc.
Bottle Type:	Round,flat/glass, Plastic Bottle	Production Capacity:	10-40times/min
Hopper Volume:	30L	After Warranty Service:	Online Support
Local ServiceÂ Location:	None	Certification:	CE GMP

Product Description

Features:

Filling volume, filling speed can be adjustable, bottom close positive shutoff nozzles ensure drip free operations; The diameter of the filling nozzle optional within 3mm-12mm;

Piston type filling, can be operated by foot pedal or by automatic timer, could transfer between semi-automatc and automaitc;

Use silica gel O-ring(cam bear 100 Celsius degree), comply with the food safety; Can optional silica gel ring or rubber sealing ring, rubber sealing ring used for anti-corrosion produce;

One head with one cylinders, filling head can optional single head, two head;

Can optional the model: 5-50ml 15-150ml 30-300ml 60-600ml 120-1200ml 260-2600ml 500-5000ml;

Application:

Use for filling liquid and paste material, such as water, cooking oil, juice, milk, yoghourt, sauce, cream, shompoo, chilli paste, tomoto paste, paste, liquid of detergent etc;

Adopt Airtac pneumatic components, full pneumatic drive does not need electrical power, need to contact to the air compressor; safety explosion-proof type, simple operation, high filling accuracy

Parameters:

Model:	FF6-50	FF6-150	FF6-300	FF6-600	FF6-1200	FF6-2600	FF6-5000
Filling range:	5-50ml	15-150ml	30-30ml	60-600ml	120-1200ml	260-2600ml	500-5000ml
Filling nozzle:	one nozzle
Filling speed:	10-40 times/min
Filling accuracy:	within 1%
Air pressure:	0.4-0.6mpa
Control mode:	Full Pneumatic
Packaging dimension	1013335+414150cm					1224039+545454cm
Weight:	35/30kg					50/45kg

Model:	Automatic powder filling line
Composition	Including bottle distributing machine, powder filling machine, capping machine and labeling machine.
Suitable Products	Vial powder, auger powder, spices powder and many powder products.
Filling Container	Including bottles, vial bottle, jar and so on.
Filling Speed	20-60 times/min.
Automaitc Grade	It's full automatic filling line.

Model:	Automatic liquid filling line
Composition	Including bottle distributing machine, liquid filling machine, capping machine and labeling machine.
Suitable Products	water, e-liquid , pesticide and many liquid products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	6*10-40 times/min.
Automaitc Grade	It's full automatic filling line.

Model:	Automatic liquid filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	water, e-liquid , pesticide and many liquid products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40 times/min * 4.
Automatic Grade	It's full automatic liquid filling machine.

Model:	Automatic paste filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	cream, cosmetic and many paste products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40 times/min * 4.
Automatic Grade	It's full automatic paste and liquid filling machine.

Model:	Pneumatic paste and liquid filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	cream, cosmetic and many paste products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40times/min.
Automatic Grade	It's semi automatic paste and filling machine.

Model:	Pneumatic liquid filling machine
Material	Body is 202ss, food grade 304ss(can be customize with 316ss).
Suitable Products	water, e-liquid , pesticide and many liquid products.
Filling Container	Including bottles, jar, vial bottle and so on.
Filling Speed	10-40times/min.
Automatic Grade	It's semi automatic filling machine.

Our Company

Certifications

Our Business

FQA

Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.

Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.

Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.

Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.

Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.

Your Satisfaction is Our Honor!
